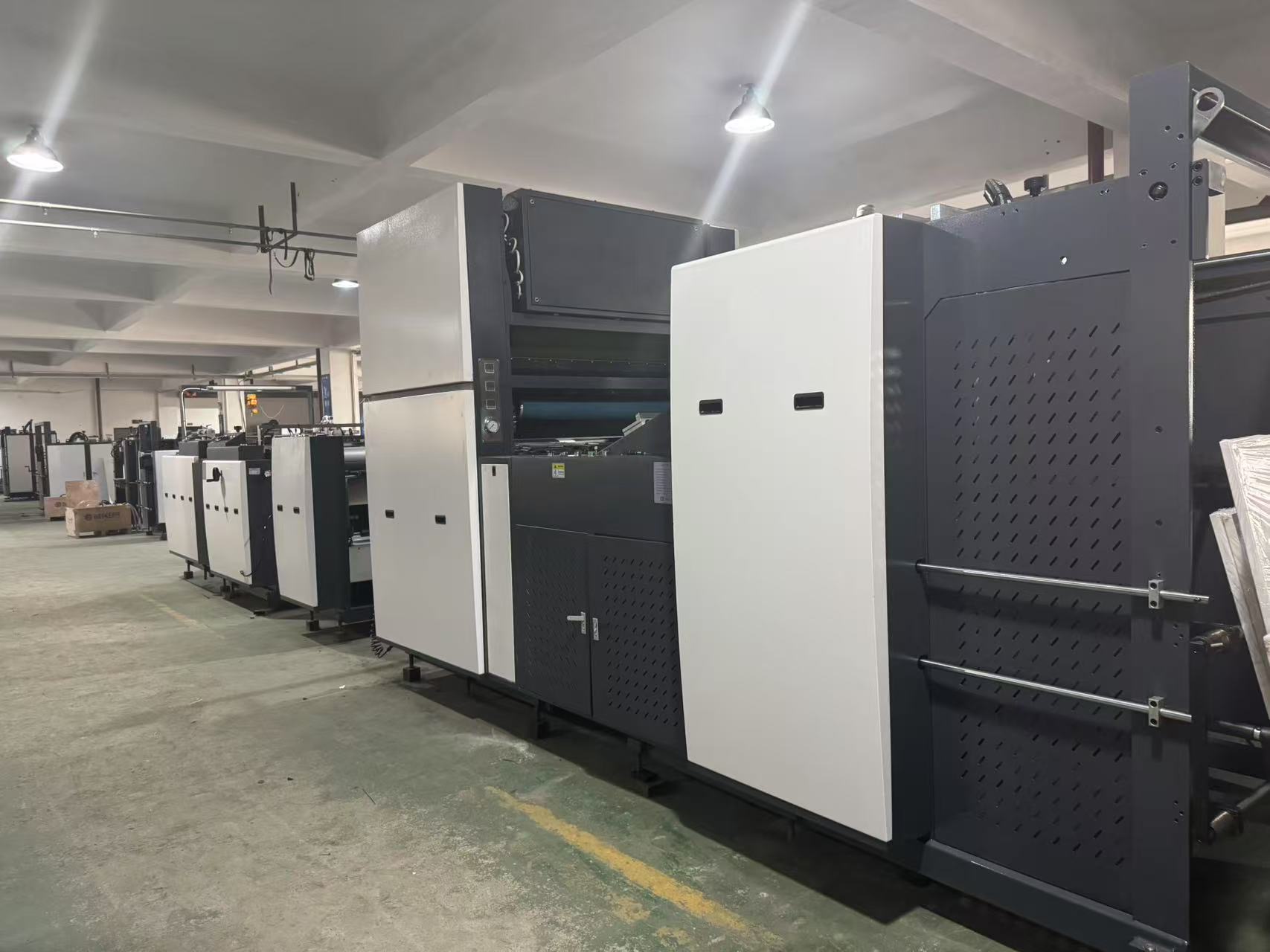

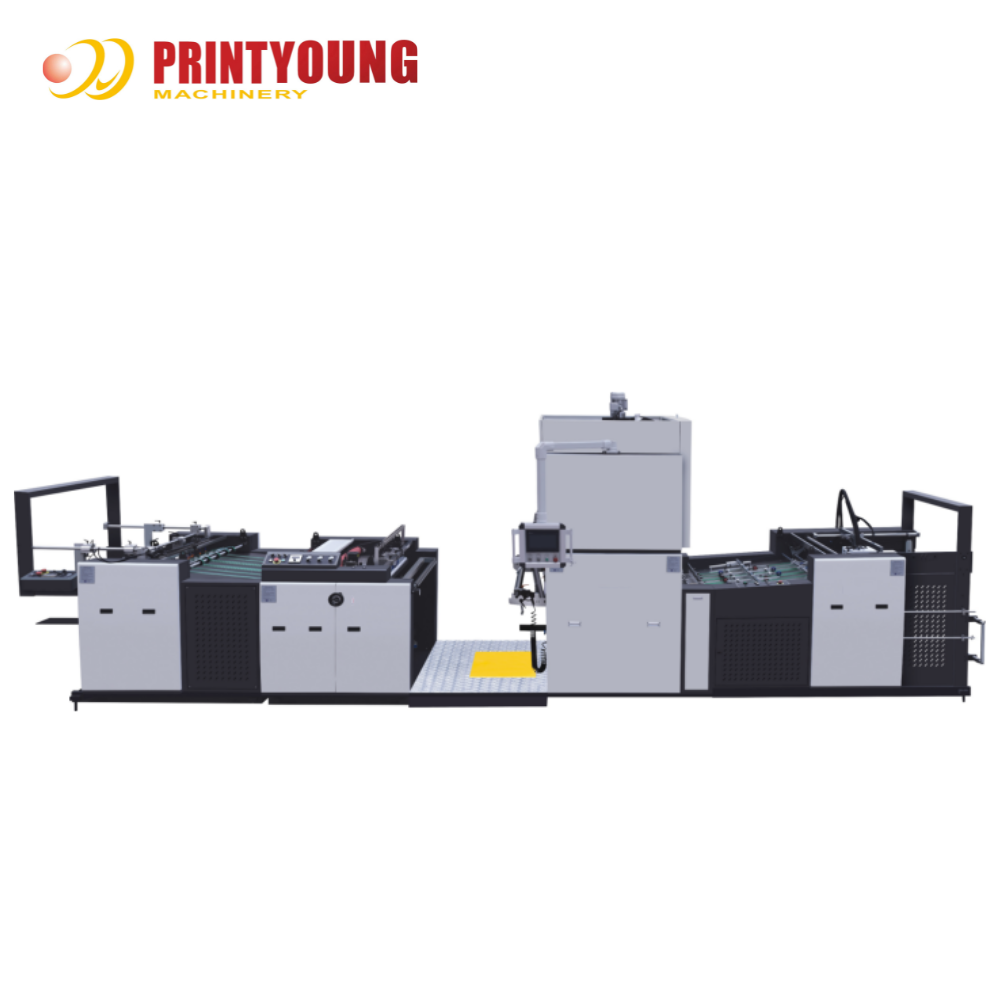

FHS-1050 1300 Automatic Vertical Film Laminating Machine

Features

Model highlights:(water-based dry lamination,pre-coated film lamination)
1.Pre-stacking mechanism to realize non-stop paper feeding and paper delivery.
2.Adopt high-speed offset printing machine feeder (12000 sheets/hour) to ensure fast and stable operation.
3.High degree of intelligence,the whole machine is controlled by PLC and man-machine,and the frequency conversion and servo linkage of each part ensure that the speed is synchronized and easy to operate by one person.The main motor adopts frequency conversion motor and servo side,which has higher accuracy.
4.The drying system adopts the hot air circulation system,combined with the active follow-up drying and heating device,which improves the drying efficiency of acceleration and deceleration.
5.The main transmission of the whole machine adopts synchronous belt transmission,which makes the transmission stable and accurate,while ensuring the accuracy,greatly improving the stability and service life of the machine. (the first among peers to adopt)
6.Modular combination,optional matching powerful multi-functional configuration to solve various laminating process problems!
UV Light-curing Configuration Function

The fastness of the film is strong,especially to solve the film creasing,creasing,embossing and embossing of the large solid bottom film!
Powder Removal Configuration Function

Remove surface dust and impurities to make the surface more beautiful and compact!
Double-sided Configuration Function

The upper and lower sides are laminated at the same time,with high efficiency and no waste!
Double Pressure Configuration Function

The surface has good compaction,no whitening,more firm fit,and enhanced surface compaction and fastness*2!
Embossing Configuration Function

Various embossing embodies the aesthetics of surface decoration!
Chain Knife Configuration Function

Slitting of non-tailed film and high toughness film such as PET and aluminum foil film!
Hot Knife Configuration Function

High-speed/tailless film and PET,aluminum foil film and other high-toughness film slitting!
Corona Configuration Function

Solve post-processing problems such as low.

Technical Parameters

Model	FHS-1050	FHS-1300
Max. Paper Size	1050 * 1050 mm	1300 * 1650 mm
Min. Paper Size	300 * 300 mm	420 * 420 mm
Paper Weight	80 ~ 500 g/m²
Laminating Speed	0 ~ 110 m/min
Power	60kw actual power consumption for production(20-25kw/h)
Total Weight	8000 kg	9000 kg
Overall Dimensions	8600 * 1800 * 2000 mm	8600 * 2160 * 2000 mm
Optional Specifications	W1050 * L1050/1200/1450/1620 mm
Optional Specifications	W1250 * L1050/1200/1450/1620 mm

Configuration

Automatic Paper Feeding System

The paper feeder is an important part of the laminating machine.The function of the paper feeder is to separate the paper one by one automatically,accurately,steadily and periodically,and continuously send it to the regular positioning position.
The paper feeding method of this machine is continuous paper feeding,which has the advantages of high degree of automation,compact structure,good performance, convenient operation,accurate paper feeding and high precision.The main components of the paper feeder include the paper feeding bridge,the paper feeding head,the stacking table,the lifting system and the transmission system.
(1) Adopt oil-free vacuum air pump paper suction system;
(2) High-speed offset printing feeder (12,000 sheets/hour) ensures high-speed and stable operation;
(3) Stepless frequency conversion speed regulation paper feeding;
(4) The paper conveying table of the production line is positioned and transported by vacuum suction to ensure smooth,neat and stable conveying;
(5) The upper and lower limit protection devices of the paper feeding table;

(6) Manual rapid lifting;
(7) Paper feeding table automatic replenishment paper feeding system;
(8) With double-sheet controller:double-sheet or multi-sheet feeding detection stop system,use the induction of the safety voltage detector to detect double or multiple sheets of paper;

(9) Centralized control of servo technology,PLC control and human-computer,interaction system,printing paper stack error ± 2mm;
(10) Front gauge/pull gauge positioning system;
(11) Anti-debris magnet safety device to protect the iron roller.

Laminating Host

(1) The whole machine is driven by high-precision timing belt and some imported chains;
(2) 380mm composite heating roller,matched with electromagnetic variable power heating system;
(3) 320mm imported silicone pressure roller,which has good temperature and pressure resistance and non-stick performance;
(4) 800mm drying large hot roller,coated with industrial non-stick material Teflon;
(5) The drying system adopts a hot air circulation energy-saving system,combined with an active follow-up drying and heating device;
(6) Computer monitoring system,safe and easy to operate.

Separation System

(1) Back perforating system;

(2) High speed rotation knife;
(3) Anti-curve system;
(4) Pneumatic perforating cutting system;
(5) Slot for the separating roller;
(6) Employing a centralized control system for the entire machine,achieving precise pneumatic release.

Automatic Paper Stacker

(1) Thin paper tile delivery system,vacuum suction paper paper stabilizer device,to keep the paper stable;
(2) The receiving table can be lifted and lowered manually;
(3) The upper and lower limit protection devices of the delivery table;
(4) The automatic lowering device of the delivery table,and the paper stop and alarm system at the delivery limit;
(5) Automatic paper cumulative counting;
(6) Match paper jam detection system to realize intelligent deceleration and paper jam stop system.
(7) High-speed pneumatic photoelectric sheet-patting system is adopted,and the paper-patching is accurate and neat.

Power Removal(Optional)

1.Preheat and compact the surface ink,which is helpful for lamination effect and speed;

2.Remove surface dust.

Hot Knife,Chain Knife(Optional)

Applications

FHS series is a high-speed pre-coating machine launched by our company,suitable for laminating processes such as posters,books,information books,color boxes,color box packaging,and handbags.

Produit Tag:

Lieu d'origine:	Chine
Nom de marque:	PRINTYOUNG
Certification:	CE
Numéro de modèle:	FHS-1050, FHS-1300

Quantité de commande min:	1 ensemble
Prix:	USD 46000 ~ 53000 Set
Détails d'emballage:	Adopte un emballage résistant à l'humidité et aux chocs, adapté au transport routier longue dist
Délai de livraison:	30 jours ouvrables
Conditions de paiement:	LC, T/T
Capacité d'approvisionnement:	1 Ensembles par mois

Modèle:	FHS-1050, FHS-1300	Max. Format du papier:	10501050 millimètres, 13001650mm
Min. Format du papier:	300300mm, 420420mm	Grammage du papier:	80 ~ 500 g/m²
Vitesse de stratification:	0 ~ 110 m/min	Pouvoir:	60KW
Poids total:	8000kg, 9000kg	Dimensions hors tout:	860018002000mm, 860021602000mm
