Aperçu ProduitsMachines de traitement de papierZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine

ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine

ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine
Informations de base
Lieu d'origine: Chine
Nom de marque: PRINTYOUNG
Certification: CE
Numéro de modèle: ZX-800
Quantité de commande min: 1 ensemble
Prix: USD 23500 Set
Délai de livraison: 30 JOURS OUVRABLES
Conditions de paiement: LC, T/T
Capacité d'approvisionnement: 30 ensembles par mois
Contactez
Capacité de production: 15 ~ 20 fois/min Taille de papier: 300 * 250 mm
Max. Taille de boîte: 250*150*100mm Min. Taille de boîte: 90*110*23mm
Tension d'alimentation électrique: 380 V 50 Hz Matériau approprié: Papier couché PE
Épaisseur du papier: 200 ~ 300 g/m² Puissance totale: 6 kW

ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 0

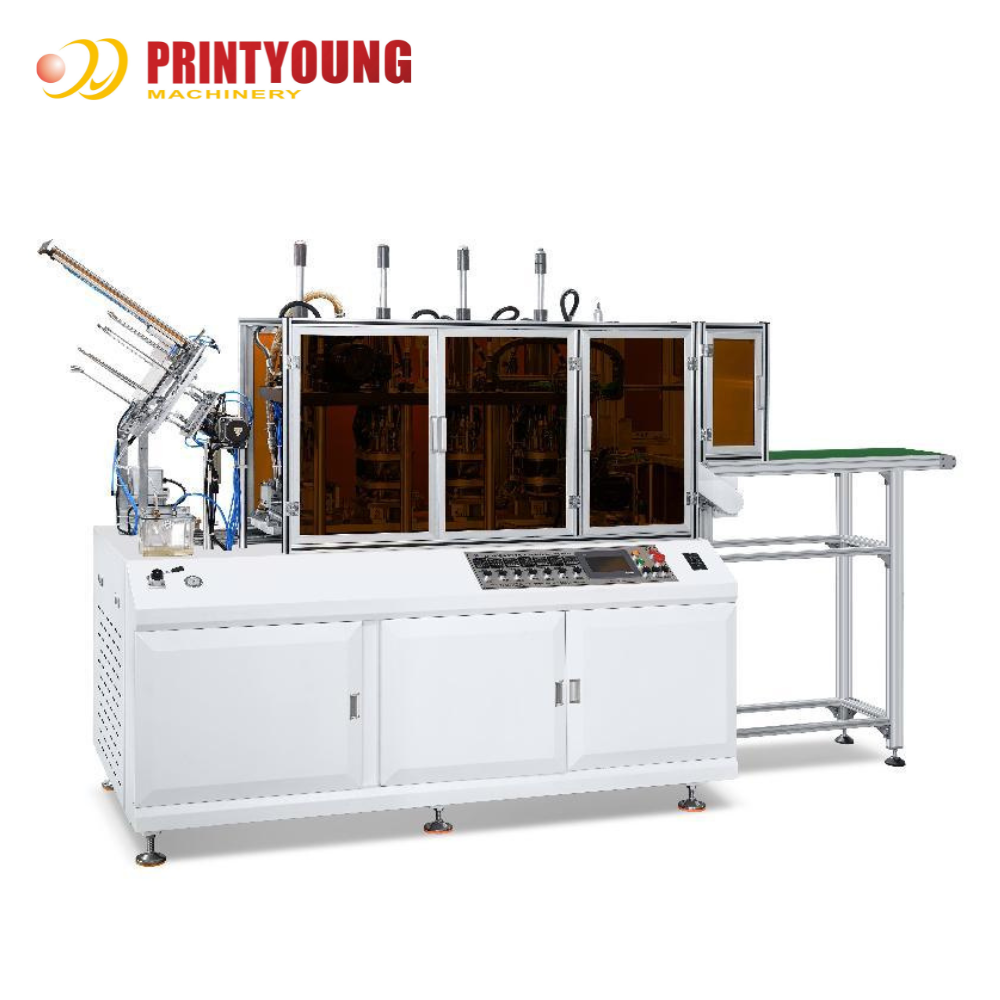

ZX-800 Automatic Square Bowl Forming Machine
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 1
Features
Automatic square bowl forming machine is a multi-station forming machine.It uses a microcomputer to control the servo system to automatically take paper,full servo forming,curling,counting and collecting continuous processes. Compared with traditional automatic paper product forming equipment,this equipment recombines the principles of pneumatic and mechanical combination,and has the advantages of higher production speed,more stable performance,safer operation,more convenient maintenance and more humanized structural design.
Technical Parameters
Type
ZX-800
Production Capacity
15 ~ 20 times/min (actual production according to product size)
Paper Size
300 * 250 mm
Max. Box Size
250 * 150 * 100 mm
Min. Box Size
90 * 110 * 23 mm
E-power Voltage
380V 50Hz (can be changed)
Suitable Material
PE coated paper
Paper Thickness
200 ~ 300 g/m²
Total Power
6 kw
Total Weight
700 kg
Overall Dimension
2100 * 750 * 1800 mm
Working Air Source
air pressure 0.2 ~ 0.3 Mpa (need to buy compressor)
Applications
It is a paper container forming equipment for producing coated paper trays,square paper bowls,square paper cups,square paper trays and so on.
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 2
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 3
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 4
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 5
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 6
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 7
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 8
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 9
