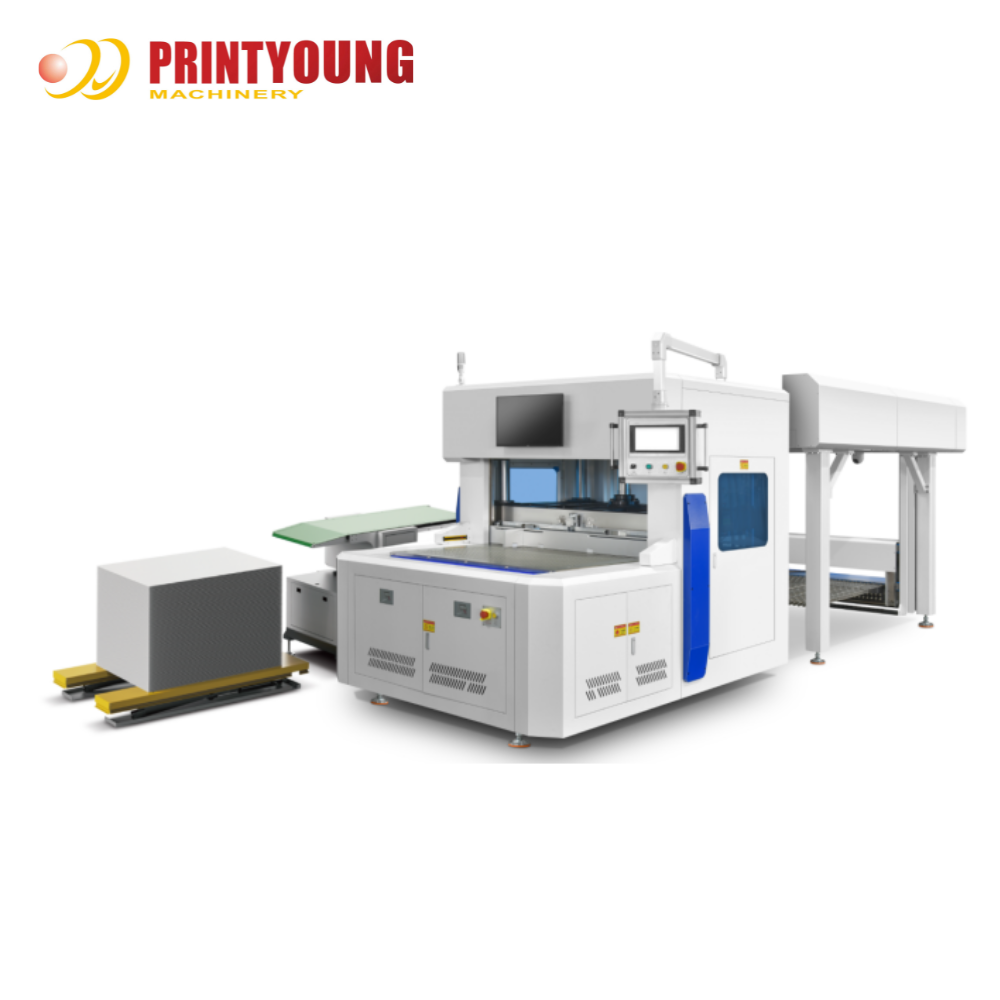

Name: PRY-1080E High Productivity PLC & Motor Automatic Paper Stripping & Blanking Machine
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRY-1080E
Price: 38000 USD
Availability: InStock

PRY-1080E High Productivity PLC & Motor Automatic Paper Stripping & Blanking Machine

Informations de base

Lieu d'origine:	Chine
Nom de marque:	PRINTYOUNG
Certification:	CE
Numéro de modèle:	PRY-1080E

Quantité de commande min:	1 ensemble
Prix:	USD 38000 Set
Délai de livraison:	30 JOURS OUVRABLES
Conditions de paiement:	LC, T/T
Capacité d'approvisionnement:	30 ensembles par mois

Contactez

Max. Taille de la pile de matériaux:

Pour les véhicules à moteur

Max. Hauteur de la pile de matériaux:

80 millimètres

Max. Product Size:

1060 * 760 millimètres

Min. Taille du produit:

100 * 80 millimètres

Max. Pression:

100 kN

Vitesse:

2 à 3 fois/min

Consommation d'air:

45 L/min

Pression atmosphérique:

0,5 ~ 0,6 MPa

PRY-1080E Paper Stripping & Blanking Machine

Features

The PRY-1080E is a new high-speed blanking system that features auto collection,auto palletizing,which used to be done by hand.
Whole Blanking Processing:

Technical Parameters

Model	PRY-1080E
Max. Material Stack Size	1080 * 780 mm
Max. Material Stack Height	80 mm
Max. Product Size	1060 * 760 mm
Min. Product Size	100 * 80 mm (no palletizing 35 * 35 mm)
Max. Pressure	100 KN
Speed	2 ~ 3 times/min
Total Power	11 kw
Average Power	6 kw
Voltage	380V / 3 phase / 50Hz
Air Consumption	45 L/min
Air Pressure	0.5 ~ 0.6 Mpa
Machine Size	4950 * 1880 * 2050 mm
Weight	4100 kgs

Configuration

Strong Structure:80mm diameter * 4pcs main frame pipe make sure the machine stable running.

Through upper and lower pins to press and remove the waste of product with one-time.
Upper Pin:∅5mm Lower Pin:∅10mm

Positioning Gauge

Automatic lifting gauge,precison paper stack positioning,make job easy.Position gauge up & down by air cylinder.

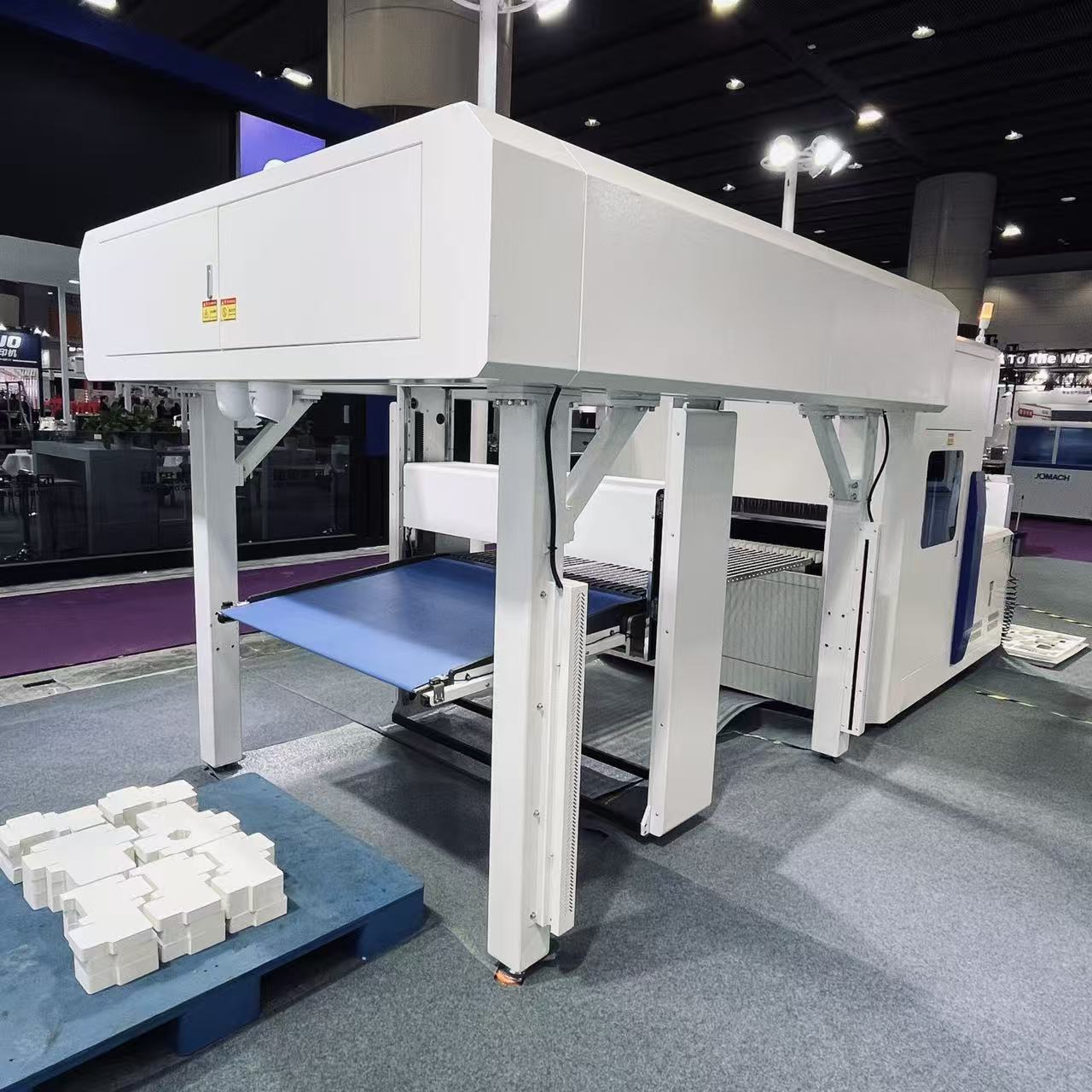

Auto Palletizing Unit

Different products can be auto palletized, effectively reducing labor intensity.

Touch screen to operate machine, easy adjust machine and set new data working.

Optional:Automatic Lifter Part

Model	PRY-SLJ
Conveyor Belt Size	1550 * 645 mm
Max. Material Stack Height	80 mm
Max. Pressure	100 bar
Feeder Size	1550 * 910 * 1100 mm
Lifter Size	1200 * 1800 * 1000 mm
Weight	550 kgs
Power	380V / 3phase / 50Hz
Total Power	3.7 kw
