Name: CM-1500A Servo Precision High Speed Sheet Cutter Machine with One Roll
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: CM-1500A
Price: 39000 USD
Availability: InStock

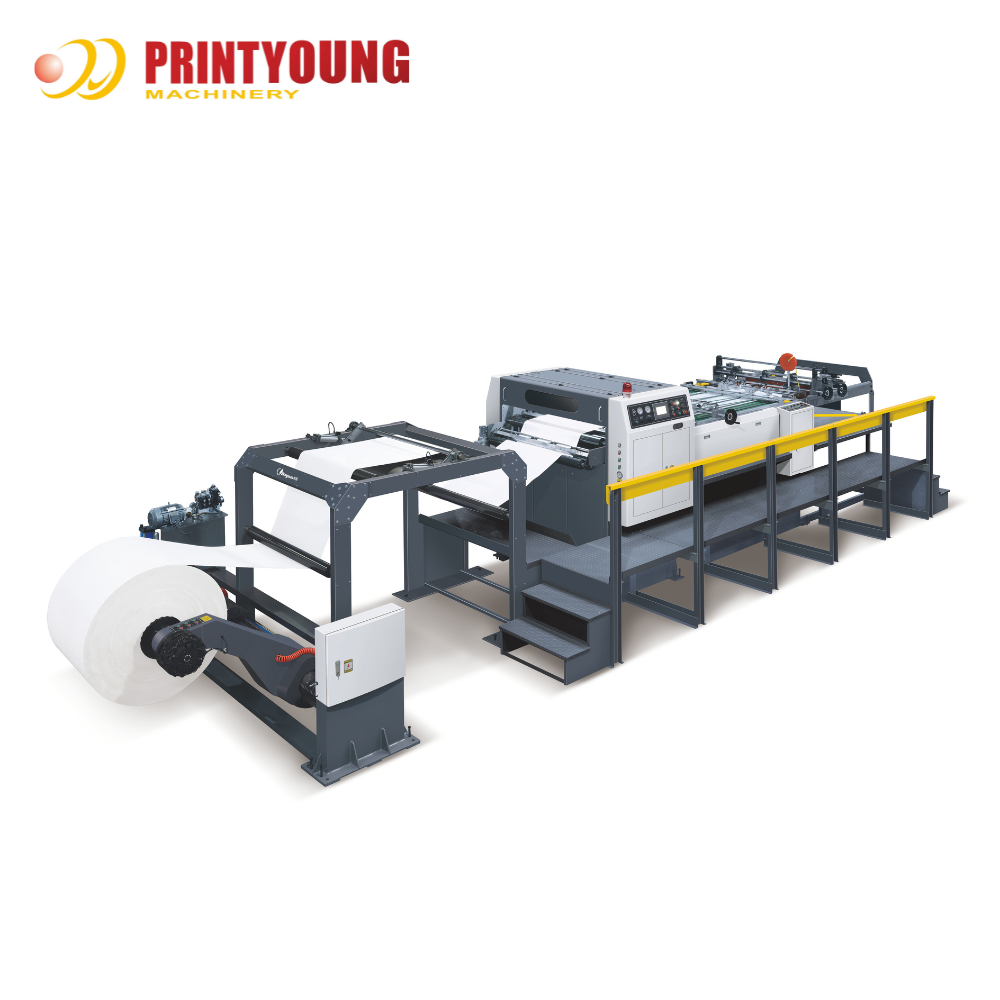

CM-1500A Sheet Cutter Machine

Features

The CM series servo precision high speed sheet cutter machine can efficiently complete slitting,rip cutting and trimming of products,as well as maintaining the highest precision and product quality.The CM series paper roll slitting machines are well equipped and almost can adapt to all die cutting requirements of products.
* Adopt nodular cast iron-QT500-7,original paper frame clamp arms casting by special technology process,thus featuring by high strength,never deformation and ensure the safety of original paper frame clamp arms.
* Adopt steel plate-Q335,the mainframe wallboard has precision manufacturing and high strength,thus will never-deformed.
* The machine uses NSK imported original bearing.
* The machine uses original parts imported from France Schneider,and Japanese OMRON, etc.
* Die cutting accuracy reach to ± 0.5mm,the highest speed reaches 400 sheet/min.
* The back cutter is adopt Germany Ni-Cr-Mo metal steel,with high precision and will never-deforms;the knife edge is easy to adjust and calibrate.
* Use the automatic angle-aligning system to realize fast angle aligning of worksheet.
* Equipped with our first-developed anti-curve automatic regulation device,ensure fast and smooth when they adjust of anti-curved paper.
* Paper feeding part adopts pre-pressing device,to ensure that the paper is not wrinkled.
* Equip with touch-screen operation interface in both Chinese and English.
* Adopt Taiwan AIRTAC pneumatic components to ensure every pneumatic action performs accurately.

Technical Parameters

Cutting Type	The up knife cut reciprocally,the down knife is fixed
Applicable Range of Paper	60 ~ 550 gsm
Max. Paper Roll Diameter	1800mm (71”)
Max. Paper Cutting Width	1500 mm
Range of Cutting Length	450 ~ 1650 mm
Cutting Sheet Number	1 sheet
Cutting Precision	The cutting length≤1000mm is : ±0.5mm The cutting length>1000mm is : ±0.1%
Max. Cutting Speed	400 cuts/min
Max. Cutting Meter Speed	300 m/min
Max. Paper Stacking Height	1500 mm
Air Pressure Source Demand	0.8 Mpa
Design Power	380V / 220V 50Hz

Configuration

Reel Stand,Paper Feeding

* Max. paper roll diameter:1800mm
* Max. paper-cutting width:1500mm
* Min. paper-cutting width:500mm(20″)
* Paper cylinder diameter:3″,6″ or 12″
* Hydraulic drive:
1.Open/close and forward/backward movement of paper roll clamp arms is driven by oil hydraulic cylinder
2.Lifting of paper roll clamp arms is driven by oil hydraulic cylinder
* Pneumatic brake brakes,automatic brakes
* Paper guide roll and relevant brackets
* Tension control system:Pneumatic tension control and swing roll to adjust the pressure arm rise or fall,to control the strength of brake

Edge Correction(Optional)

Hydraulic type,adopt accurate sensing valve for control,is driven by oil hydraulic cylinder

Anti-curve Device

* Type:Adopt motor drive and high-speed adjustment
* Anti-curve device:Anti-curve guide roll adopts patented design and efficient anti-curve treatment

Paper Pre-pressing Part

Adopt electric control and inching mode,to make the pressing roll moving vertically, ensure proper positioning of feeding paper,and reduce the phenomenon of paper creping

Photoelectric Tracking System (Optional)

* Automatic edge leading:Hydraulic edge leading,paper edge,electric-eye tracking, paper control and adjustment,and edge correction system all need to be equipped with line and edge tracking

* Automatic cursor tracking slitting:Accurately locate the dual-servo drive system,so as to realize the dual-servo motor synchronization and adjustment.

* Automatic cursor electric-eye device:High-precision decibel electric-eye,to accurately locate paper color code

Slitting Part(Optional)

* Type:Adjustable trimmed splitting knife and suction duct fan and air hose on both sides of waste paper edge.
* Upper knife:Adjustable rising and falling, switch type slitting knife,and paper cutting clearance can be adjusted manually.
* Lower knife:Knife shaft fixed the upper and lower position,and paper cutting clearance can be adjusted manually.
* Fan:1.5kw motor drive.
* Y type waste paper edge collection pipe and fixed frame.

Cutting Part

* Upper cutter roll:Adopt the UK cutter method to effectively reduce the load and noise of paper cutting as well as extend the service life of cutter.The part of upper cutter roll adopts stainless steel welding,precision finishing,and balance adjustment,to effectively reduce the vibration and noise of high-speed operation.
* Lower cutter holder:Adopt cast iron integrated forming casting,and combine with precision finishing,to have better stability.
* Drive roll:Roller 's surface adopts the expansion texture design and controls the pressurized clip paper of roller through the cylinder.
* Back cutting knife:Made of special alloy steel through precision finishing,thus having long service life;the blade is easy to adjust and calibrate.
* Safety cover:The machine stops automatically when the safety cover is open, so as to guarantee safety.

Automatic Adjustment System of Paper Edges and Corners

* Man-machine interface,easy to operate
* Type:Adopt the UK holder fixing method to fixed,to save time and manpower and improve efficiency

Man-machine Interface

* Electrical control system is easy to operate
* The cutting length,quantity and number of finished products can input directly
* The actual cutting length and cutting quantity can be displayed in real time

Paper Conveying Equipment

* Type:Horizontal multi-stage differential feeding,to produce separation count and paper stacking effect.
* First conveyor section:Quickly separate and cut the paper.
* Second conveyor section:Can be controlled independently or jointly,and adjust the paper to feed out in imbrication type.
* Paper-out conveyor section:Refined paper separator,can be adjusted by the matched with paper width.Pressurized feeding wheel to increase the stability of paper and avoid inclination of paper.

Automatic Paper Alignment and Collection Equipment

* Type:Hydraulic lifting and stacking collection paper table,descend automatically when the paper stacks to a certain height.
* Maximum effective paper stacking height: 1500mm
* Paper collection size:Width=1500mm, length=1650mm.
* Paper alignment equipment:Electric type positive paper alignment mechanism;Electric type paper alignment mechanism on both sides;Turnover type rear retaining board mechanism;Hand-operated and both sides moveable of paper alignment mechanism.

Automatic Counting Label Insert Equipment

* Type:Accurate counting transverse inserting.
* Function:
1.Set the input the number of label in the soft-touch type computer interface,to insert the label according to the set value.
2.Sheet replenish function of non-conforming products.

Produit Tag:

Lieu d'origine:	Chine
Nom de marque:	PRINTYOUNG
Certification:	CE
Numéro de modèle:	CM-1500A

Quantité de commande min:	1 ensemble
Prix:	USD 39000 Set
Délai de livraison:	30 jours de travail
Conditions de paiement:	LC, T/T
Capacité d'approvisionnement:	10 sets par mois

Gamme applicable de papier:	60 ~ 550 g/m²	Diamètre de papier maximal de petit pain:	1 800 mm (71 po)
Largeur maximale de coupe de papier:	1500 mm	Plage de longueur de coupe:	450 ~ 1650 mm
Nombre de formulaire:	1 feuille	Max. Vitesse de coupe:	400 coupes/minute
Vitesse de coupure maximale de mètre:	300 m/min	Taille d'empilement maximale de papier:	1500 mm
Demande de source de pression atmosphérique:	0,8 MPa	Puissance de conception:	380V / 220V 50Hz
